产品展示
PRODUCT

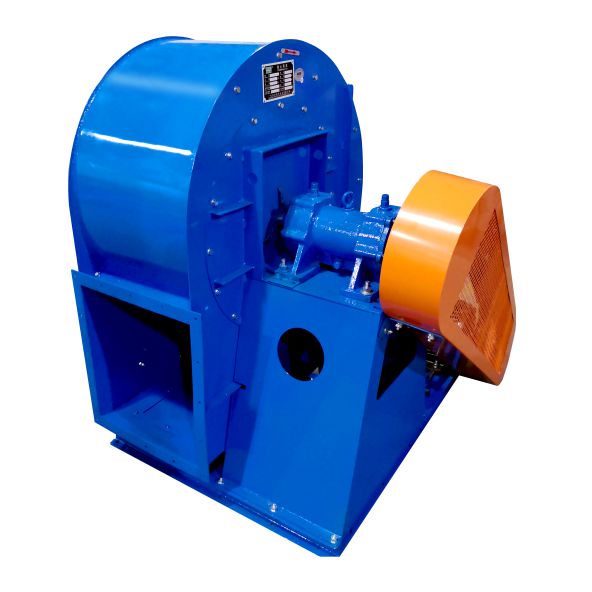

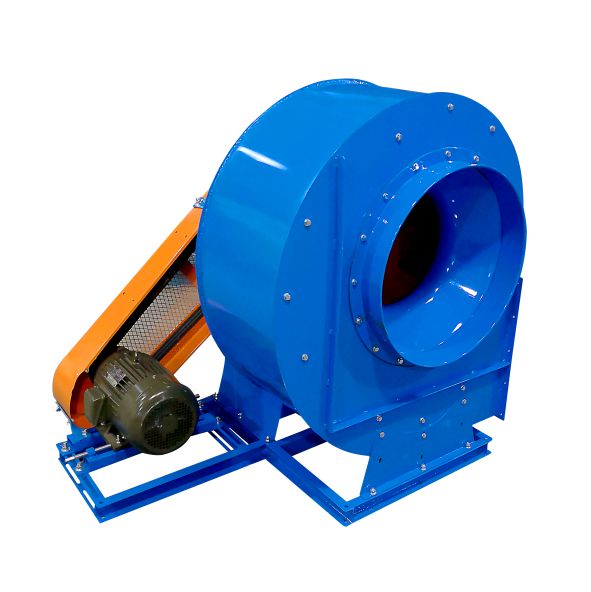

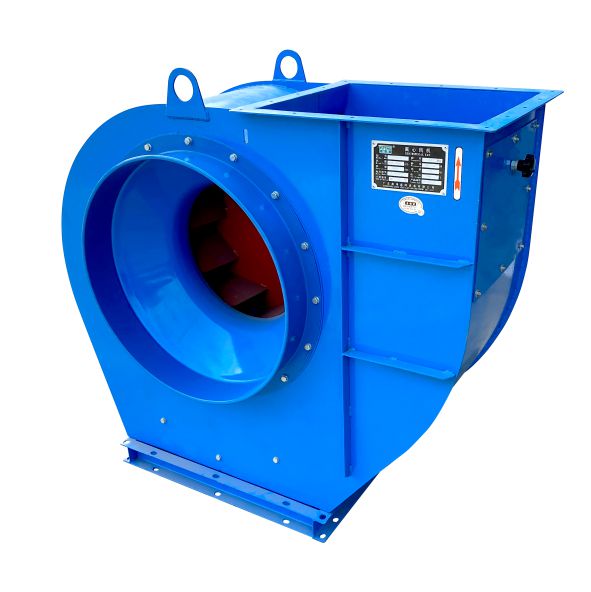

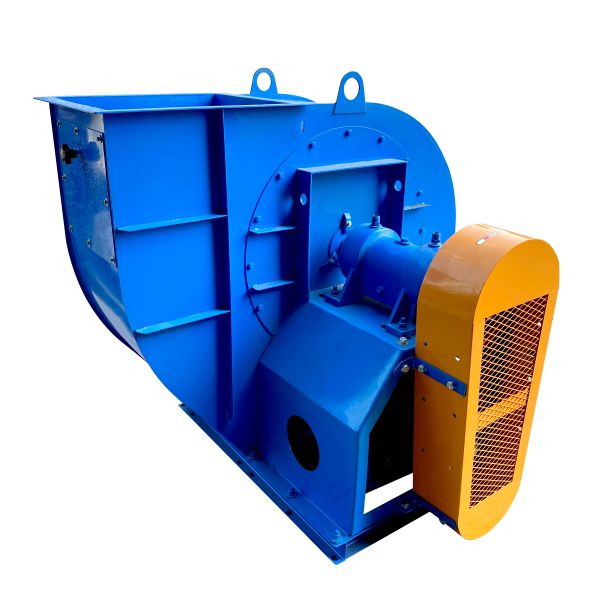

属中压大流量离心通风机，叶轮由后倾叶片，锥弧形前盘的平板型后盘组成；效率高、噪声低、坚固耐用
可用于一般工厂及各类宾馆、酒店集中空调系统气体输送、厨房排气以及地下室，影剧院、会议室、体育馆等大型建筑物的通风换气、降温除尘等
型号：6C-12C 一共5种
Medium pressure centrifugal fan with large air volume ,the impeller is consist of backward blades ,cone curved front plate and flat rear plate high efficiency ,low noise ,strong and durable
Used for air conveying of air conditioning system in the factory ,hotels and restaurant ,air exhausting in large-scale building,such as kitchen ,ventilation .cooling and dust extracting in basement ,cinema ,meeting room ,gym ,etc
Model no.:6C-12C,total 5 models.
产品详情
|
型号
Model |
功率
Power |
转速
Revolution |
风量
Air Volume |
风压 Wind pressure （Pa） |
规格 Specifications (90度长宽高cm) |
规格
Specifications |
壳叶重量
Shell weight |
叶轮重量 Wind wheel Weight (Kg) |
入风口尺寸Air inlet size |
出风口尺寸 Air outlet size |
c式壳叶单价 Unit price of type C shell leaf （RMB） |
风轮价 Wind turbine price （RMB） |
|
6C |
15 |
2240 |
10314-20628 |
2734-1733 |
1650x11050x1140 |
1370x1120x1400 |
234 |
23 |
|
|
6200 |
800 |
|
11 |
2000 |
9206-18418 |
2176-1380 |
Φ600 |
480x420 |
|||||||
|
7.5 |
1800 |
8288-16576 |
1760-1116 |
|||||||||
|
5.5 |
1600 |
7367-14734 |
1389-881 |
|
|
|||||||
|
3 |
1250 |
5756-14734 |
846-537 |
Φ600 |
416x476 |
5800 |
600 |
|||||
|
2.2 |
1000 |
4605-9209 |
541-344 |
|
|
|||||||
|
1.1 |
800 |
3684-7367 |
346-220 |
|
|
|||||||
|
7C |
18.5 |
1800 |
13161-26322 |
2395-1519 |
1890x1210x1180 |
1150x1200x1470 |
345 |
36 |
Φ700 |
610x490 |
9000 |
960 |
|
15 |
1600 |
11698-23397 |
1890-1199 |
|||||||||
|
7.5 |
1250 |
9140-18279 |
1151-731 |
8600 |
900 |
|||||||
|
5.5 |
1120 |
8189-16378 |
924-586 |
|||||||||
|
4 |
1000 |
7312-14623 |
736-468 |
|||||||||
|
8C |
37 |
1800 |
28105-36427 |
2920-2302 |
1390x2000x1470 |
1650x1400x1680 |
400 |
45 |
Φ800 |
540x560 |
11400 |
2200 |
|
30 |
1800 |
19646-25240 |
3143-3032 |
|||||||||
|
22 |
1600 |
17463-22435 |
2478-2390 |
|||||||||
|
11 |
1250 |
13643-22435 |
1507-1106 |
10800 |
2000 |
|||||||
|
7.5 |
1120 |
12224-15705 |
1209-1166 |
|||||||||
|
5.5 |
1000 |
10914-14022 |
963-929 |
|||||||||
|
3 |
800 |
8732-16190 |
615-45 |
|||||||||
|
2.2 |
710 |
7749-11085 |
485-450 |
|||||||||
|
10C |
30 |
1120 |
31237-43722 |
1902-1405 |
2320x1750x1720 |
2200x1750x2120 |
760 |
140 |
Φ1000 |
800x720 |
17600 |
3000 |
|
18.5 |
1000 |
27890-39038 |
1514-1199 |
|||||||||
|
15 |
900 |
25101-35134 |
1225-970 |
|||||||||
|
11 |
800 |
22312-31230 |
967-766 |
15600 |
3200 |
|||||||
|
7.5 |
710 |
19802-27717 |
7461-603 |
|||||||||
|
5.5 |
630 |
17571-24594 |
599-476 |
|||||||||
|
4 |
560 |
15618-21861 |
473-375 |
|||||||||
|
3 |
500 |
13945-19519 |
377-299 |
|||||||||
|
12C |
55 |
1000 |
63952-67457 |
1859-1729 |
2816x2280x2600 |
2816x2300x2450 |
|
|
Φ1200 |
960x840 |
26000 |
4400 |
|
37 |
900 |
43375-60712 |
1767-1399 |
|||||||||
|
30 |
800 |
38556-53966 |
1395-1104 |
|||||||||
|
18.5 |
710 |
34218-47895 |
1097-869 |
24000 |
4200 |
|||||||
|
15 |
630 |
30362-42498 |
863-684 |
|||||||||
|
11 |
560 |
31774-37776 |
646-540 |
|||||||||
|
7.5 |
500 |
24098-33728 |
543-430 |
|||||||||
|
5.5 |
450 |
25532-30356 |
417-348 |
|||||||||
|
4 |
450 |
21687-23610 |
440-434 |
|||||||||
|
3 |
450 |
19278-26983 |
347-275 |
