产品展示
PRODUCT
属中压大流量离心通风机，叶轮由后倾叶片，锥弧形
前盘和平板型后盘组成
效率高、噪声低、坚固耐用
可用于一般工厂及各类宾馆、酒店集中空调系统气体输
送、厨房排气以及地下室、影剧院、会议室、体育馆等
大型建筑物的通风换气、降温除尘等
型号：2A-7A
Medium pressure centrifugal fan with large
air volume ,the impeller is consist of backward
blades ,cone curved front plate and
flat rear plate
High efficiency ,low noise ,strong and durable
Used for air conveying of air conditioning system
in the factory ,hotels and restaurant ,air exhausting
cooling and dust extracting in basement ,cinema ,
meeting room ,gym ,etc
Model no.:2A-7A
产品详情
|
型号
Model |
功率
Power |
转速
Revolution |
风量
Air Volume |
风压 Wind pressure （Pa） |
规格
Specifications |
总重量
Total weight |
叶轮重量 Wind wheel Weight (Kg) |
入风口尺寸Air inlet size |
出风口尺寸 Air outlet size |
加脚单价 Extra unit price （RMB） |
风轮价 Wind turbine price （RMB） |
整机单价 Unit price of complete machine（RMB） |
|
2A |
0.55 |
2800 |
878-1600 |
285-363 |

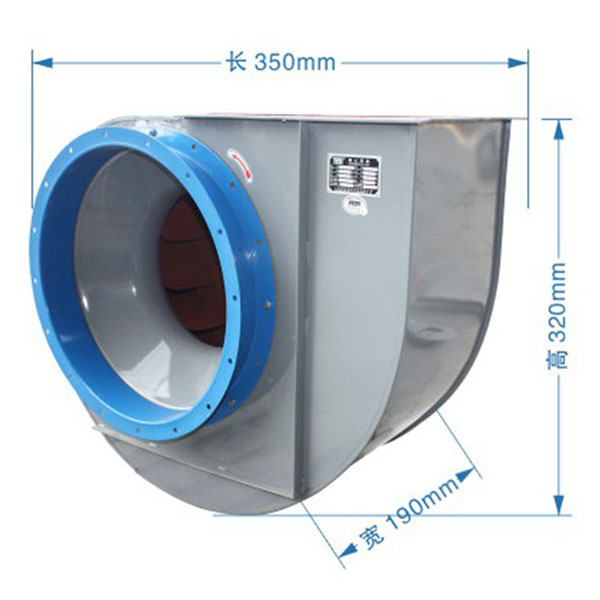

350x190x320 |
19.2 |
2.5 |
Φ200 |
170x130 |
820 |
120 |
760 |
|
2.5A |
1.1 |
2800 |
1020-1911 |
850-450 |
380x 190x400 |
23 |
2.8 |
φ250 |
198x145 |
880 |
140 |
820 |
|
2.8A |
0.75 |
1450 |
565-1178 |
294-152 |
|
|
|
Φ |
|
1180 |
180 |
1040 |
|
1.5 |
2900 |
1131-2356 |
994-606 |
570x560x470 |
38 |
4.4 |
Φ280 |
195x220 |
1260 |
1090 |
||
|
3.2A |
3 |
2900 |
1688-3517 |
1300-792 |
|
|
|
φ |
|
1460 |
240 |
1300 |
|
1.1 |
1450 |
844-1758 |
324-198 |
|
|
|
φ |
|
1380 |
1200 |
||
|
3.6A |
3 |
2900 |
2664-5268 |
1578-989 |
740x670x600 |
60 |
6.9 |
Φ360 |
260x288 |
1760 |
400 |
1600 |
|
1.1 |
1450 |
1332-2634 |
393-247 |
|
|
|
φ |
|
1440 |
1260 |
||
|
4A |
5.5 |
2900 |
4012-7419 |
3014-1320 |
810x770x710 |
83 |
12.6 |
Φ400 |
280x320 |
3200 |
460 |
2960 |
|
1.1 |
1450 |
2856-5281 |
364-416 |
|
|
|
φ |
|
1900 |
1660 |
||
|
4.5A |
7.5 |
2900 |
5712-10562 |
2554-1673 |
910x800x750 |
111 |
14 |
Φ450 |
305x360 |
3520 |
560 |
3200 |
|
1.1 |
1450 |
2856-5281 |
634-416 |
|
|
|
φ |
|
2200 |
1800 |
||
|
5A |
15 |
2900 |
7728-15455 |
3187-2019 |
|
|
|
φ |
|
5500 |
620 |
5000 |
|
2.2 |
1450 |
3864-7728 |
790-502 |
911x960x830 |
87 |
18 |
Φ500 |
400x350 |
2800 |
2500 |
||
|
5.6A |
22 |
2900 |
10122-25736 |
1450-2330 |
|
|
|
φ |
|
8300 |
520 |
8000 |
|
6A |
4 |
1450 |
6677-13353 |
1139-724 |
1200x960x990 |
135 |
23 |
Φ600 |
410x560 |
4000 |
720 |
3700 |
|
1.5 |
960 |
4420-8841 |
498-317 |
|
|
|
φ |
|
3600 |
3300 |
||
|
6.5A |
7.5 |
1450 |
8760-17620 |
1330-886 |
250x1000x1050 |
158 |
28 |
Φ650 |
580x460 |
6200 |
1000 |
5800 |
|
7A |
11 |
1450 |
10602-21204 |
1550-984 |
1080x1300x1100 |
235 |
30 |
Φ700 |
555x490 |
7600 |
1200 |
7200 |
