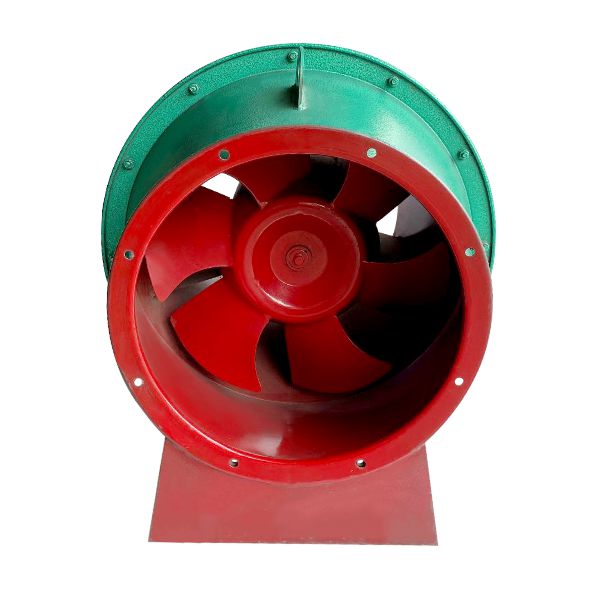

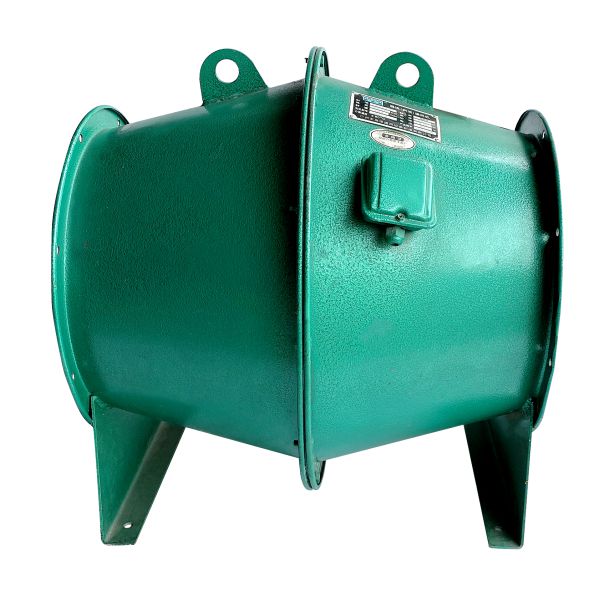

子午加速型流道及叶片设计。
流量系数大于离心式风机、压力系数高于轴流风机。
用途：高层建筑、矿厂、企业的加压送排风之用。
型号：3.0F至8.0S共13种规格型号。
Meridian acceleration type flow channel and blade
The coefficient of air volume is higher than centrifugal fan,the
coefficient of pressure is higher than axial fan
Application:suitable for pressurizing ,supplying and exhausting
air in high-rise building ,mining factory,enterprise
Model no.:3.0F-8.0S,total 13 models
产品详情
|
型号
Model |
功率
Power |
转速
Revolution |
风量
Air Volume |
风压 Wind pressure （Pa） |
规格
Specifications |
总重量
Total weight |
整机单价 Unit price of complete machine（RMB） |
风叶价 Wind leaf Price (RMB) |
|
3.0F |
0.25 |
1400 |
864-2592 |
179-125 |
779×580×386 |
|
800 |
280 |
|
3.5S |
0.18 |
910 |
908-2725 |
107-75 |
520×295×442 |
|
1200 |
380 |
|
3.5F |
0.37 |
1400 |
1372-4116 |
243-170 |
|
|
1100 |
|
|
4.0S |
0.25 |
910 |
1356-4068 |
139-97 |
594×335×506 |
|
1400 |
480 |
|
4.0F |
0.75 |
1400 |
2048-5163 |
318-222 |
600×600×670 |
|
1600 |
|
|
4.5S |
0.37 |
910 |
1931-4862 |
177-131 |
668×370×580 |
|
1700 |
500 |
|
4.5F |
1.1 |
1400 |
2916-5832 |
403-308 |
|
1760 |
||
|
5.0S |
0.75 |
910 |
2648-6676 |
218-152 |
750×410×680 |
|
2000 |
540 |
|
5.0F |
2.2 |
1420 |
4000-10084 |
498-347 |
|
2200 |
||
|
6.0S |
1.5 |
960 |
4576-11441 |
312-233 |
900×490×830 |
|
3200 |
600 |
|
6.0F |
5.5 |
1450 |
6912-17425 |
717-500 |
|
4000 |
||
|
7.0S |
3 |
960 |
6912-17425 |
427-318 |
1040×560×940 |
|
6000 |
700 |
|
8.0S |
7.5 |
960 |
10846-21697 |
558-427 |
1188×635×1088 |
|
6400 |
800 |
